CAD to a rotating base

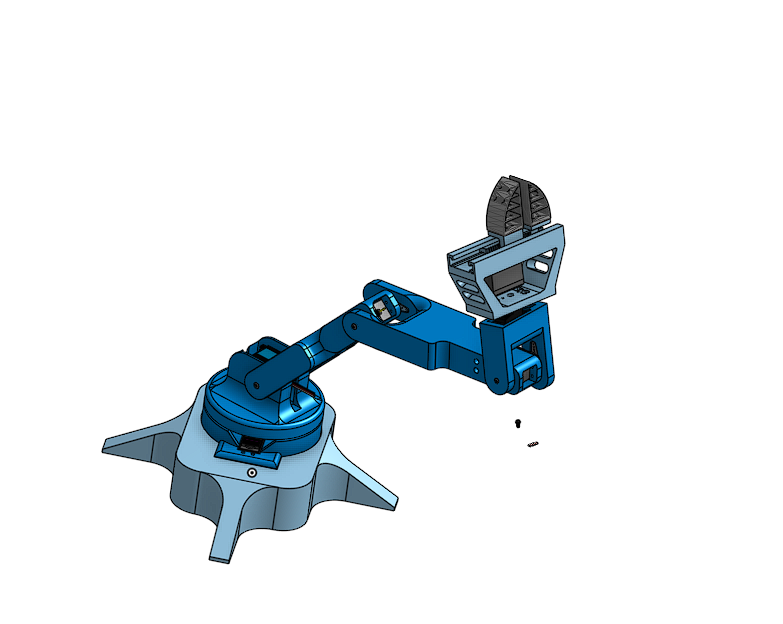

The first CAD links were finished and printed. The base could spin and the arm began moving, but the rear servo-horn support kept popping out. That was the first sign that the joint structure needed more than a basic fit.
The original robot controller stopped working, so I rebuilt the control system around an ESP32 and successfully powered the drive motor again.
The replacement brain. It runs the web controls and coordinates the car's electronics.
I redesigned the car as a custom, network-controlled robotics platform after its proprietary controller failed. The ESP32 now coordinates the drive motors, steering, display, and status lighting while hosting a low-latency browser controller over WebSockets.

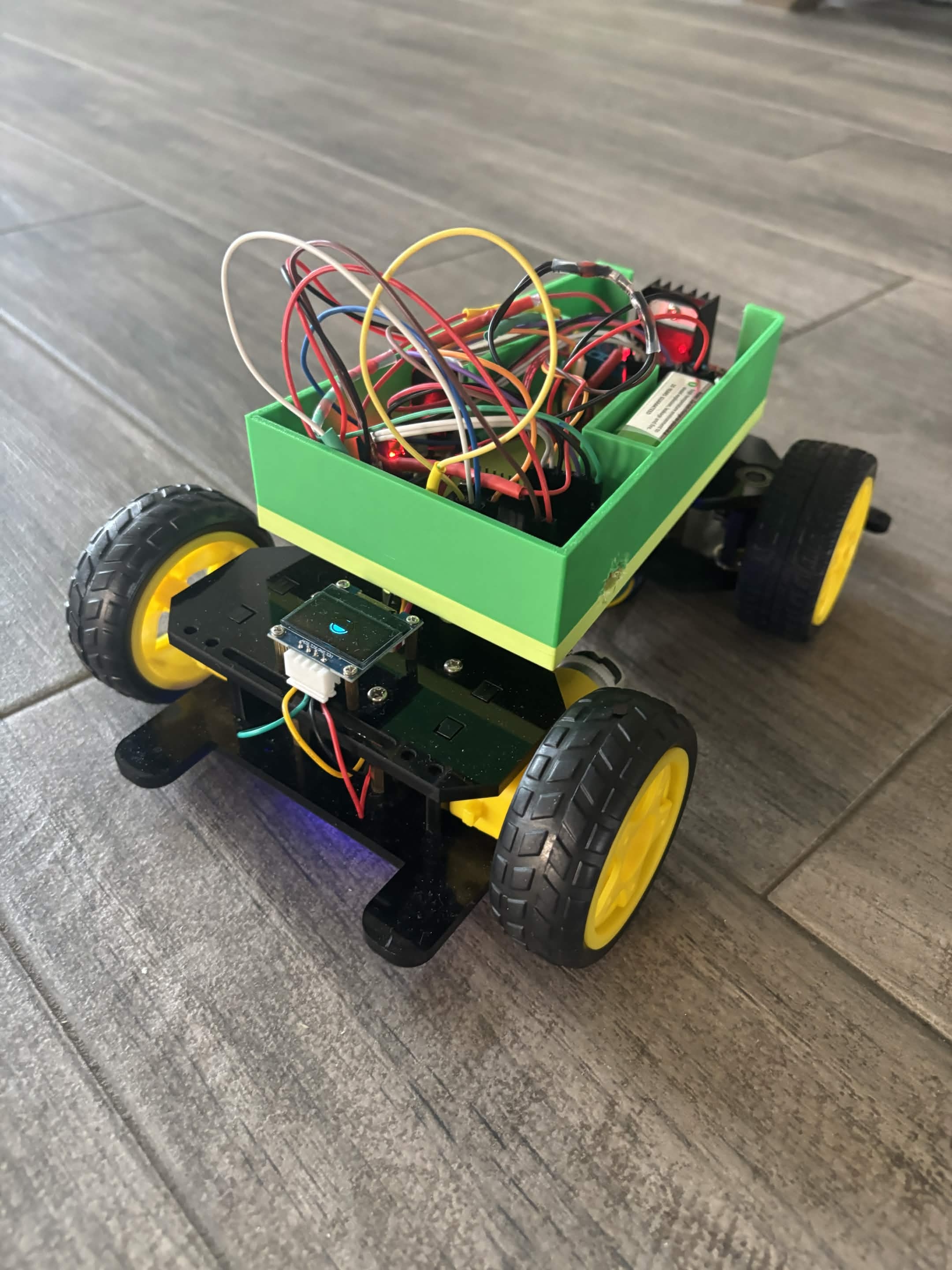

Removed the failed factory receiver, wired an ESP32 to dual H-bridge drivers, and brought the drive motor back to life.
Built a local web server with full-duplex WebSocket controls for responsive, multi-key driving from a custom browser dashboard.

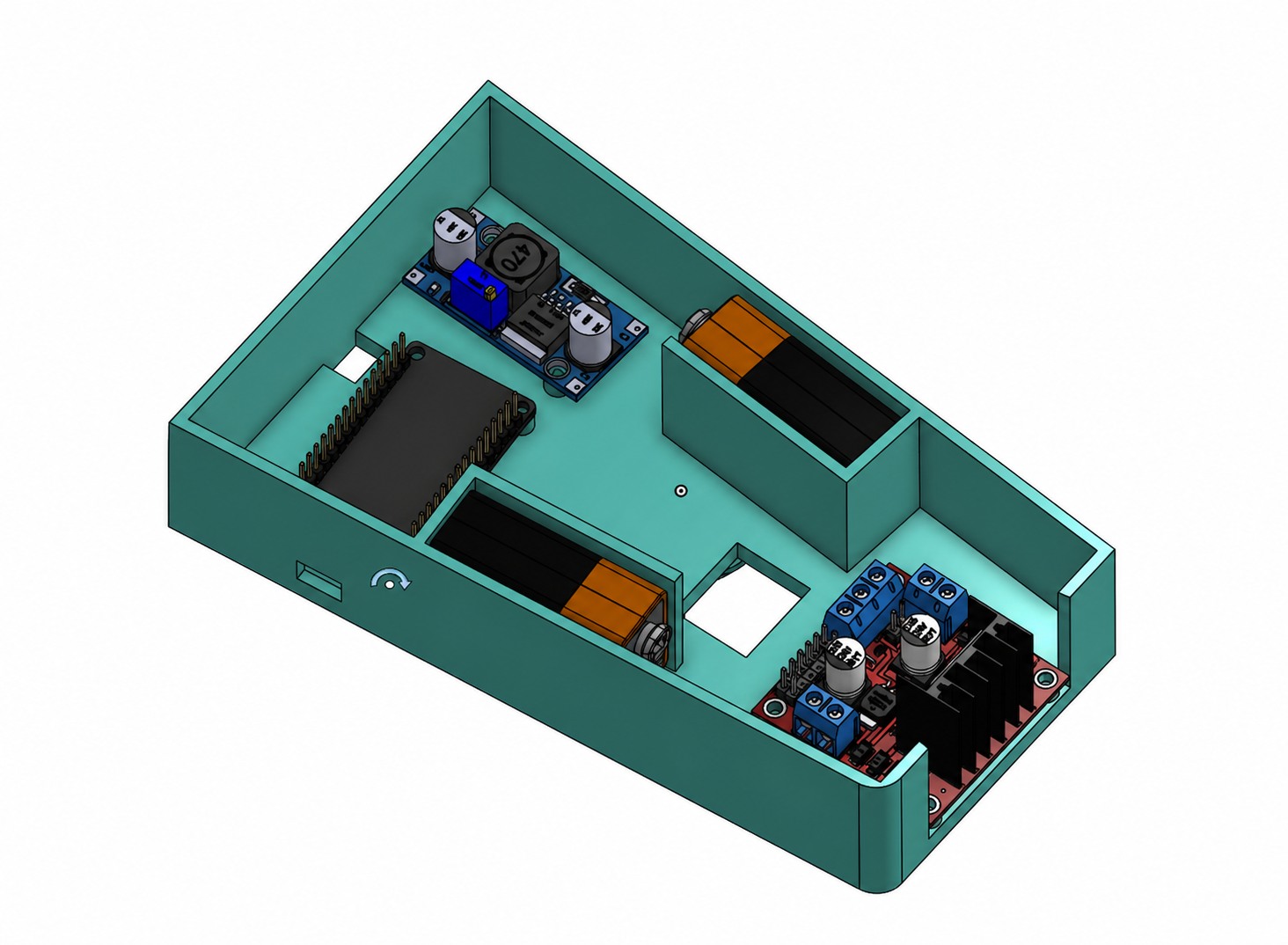

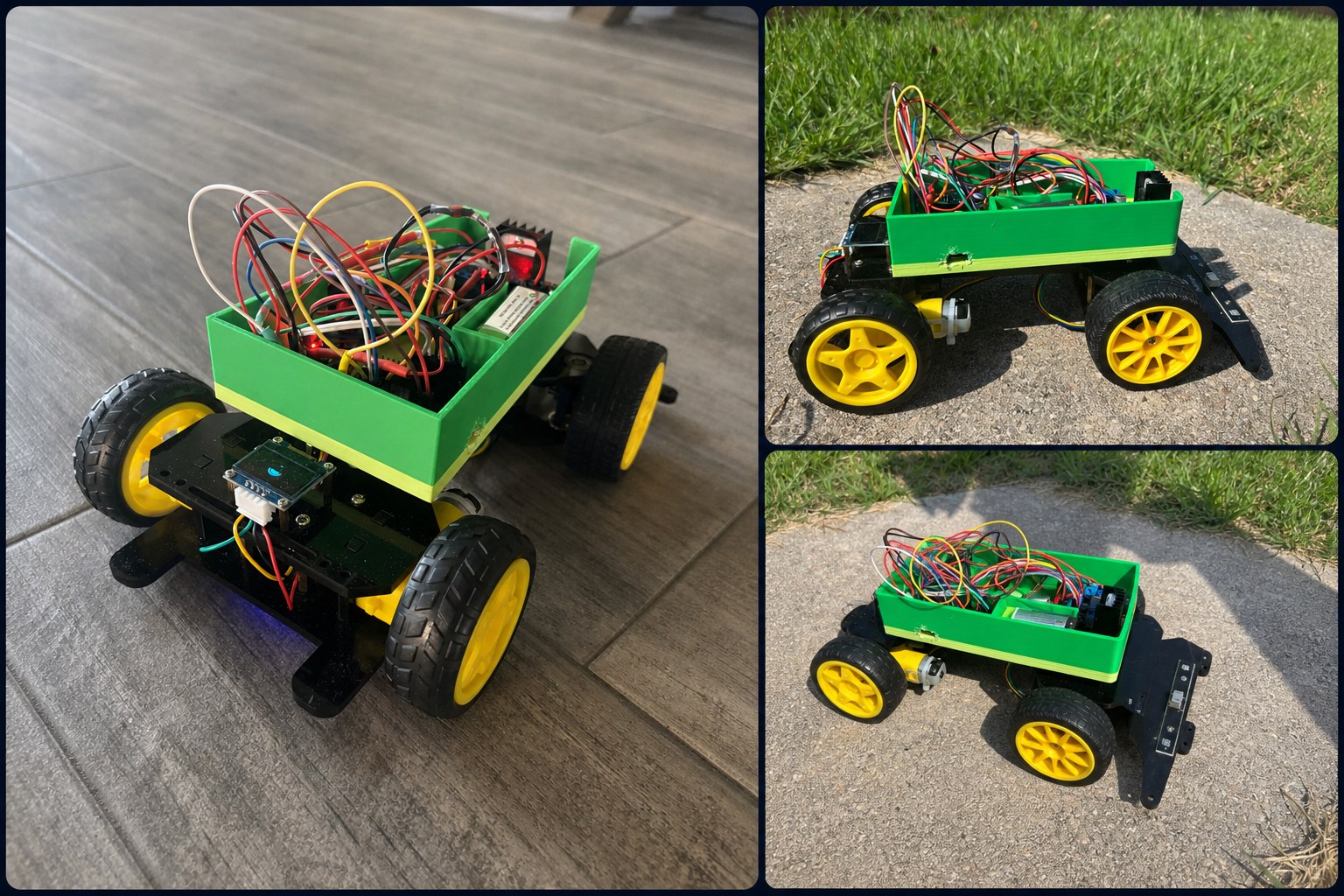

Designed and 3D-printed the green electronics enclosure, packaging the battery, motor drivers, wiring, ventilation, OLED telemetry screen, and status LEDs into the chassis.
The arm made it through multiple new servo mounts, a lighter gripper, a wider base, and stronger gear components. I am now addressing base skipping and stability under load.

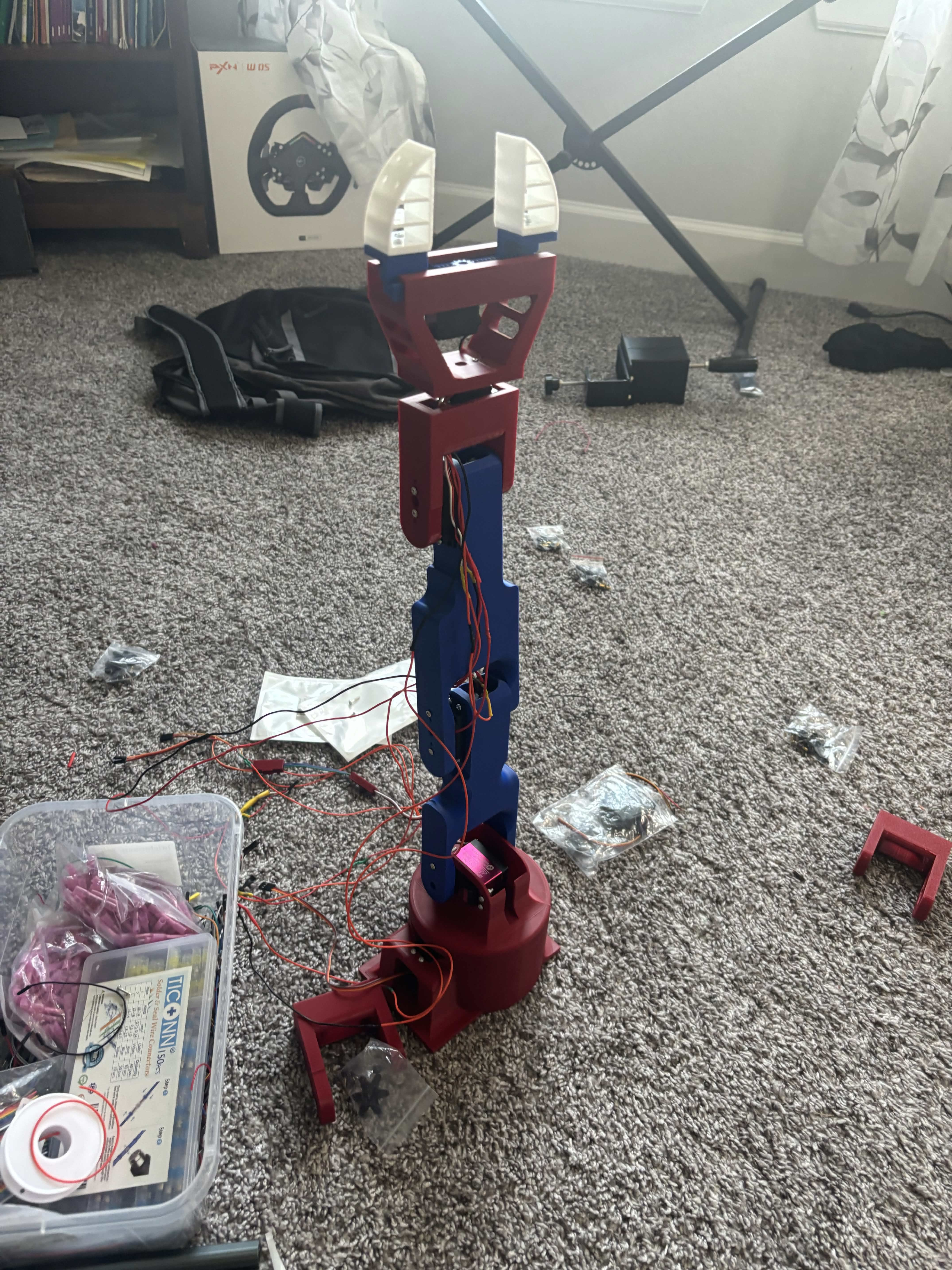

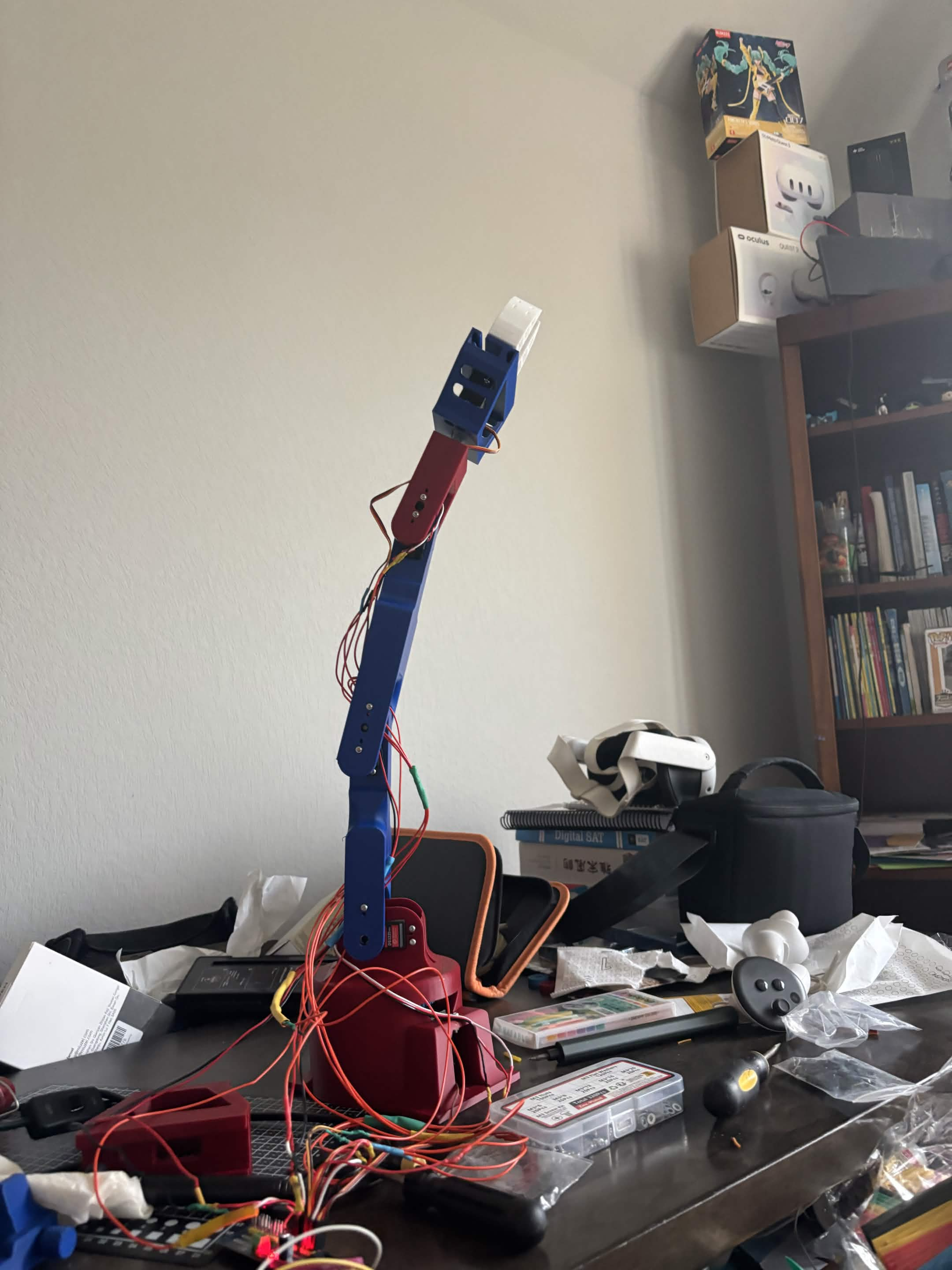

I designed this arm as a 5-degree-of-freedom robotics project and built it one mechanism at a time. The hard part was not only making the arm move; every joint had to fit its servo, hold its position, route wiring, and remain stable as the arm reached farther from the base.
The project became a real test of iterative engineering: CAD a part, print it, find what fails, redesign the weak point, then assemble and test again.

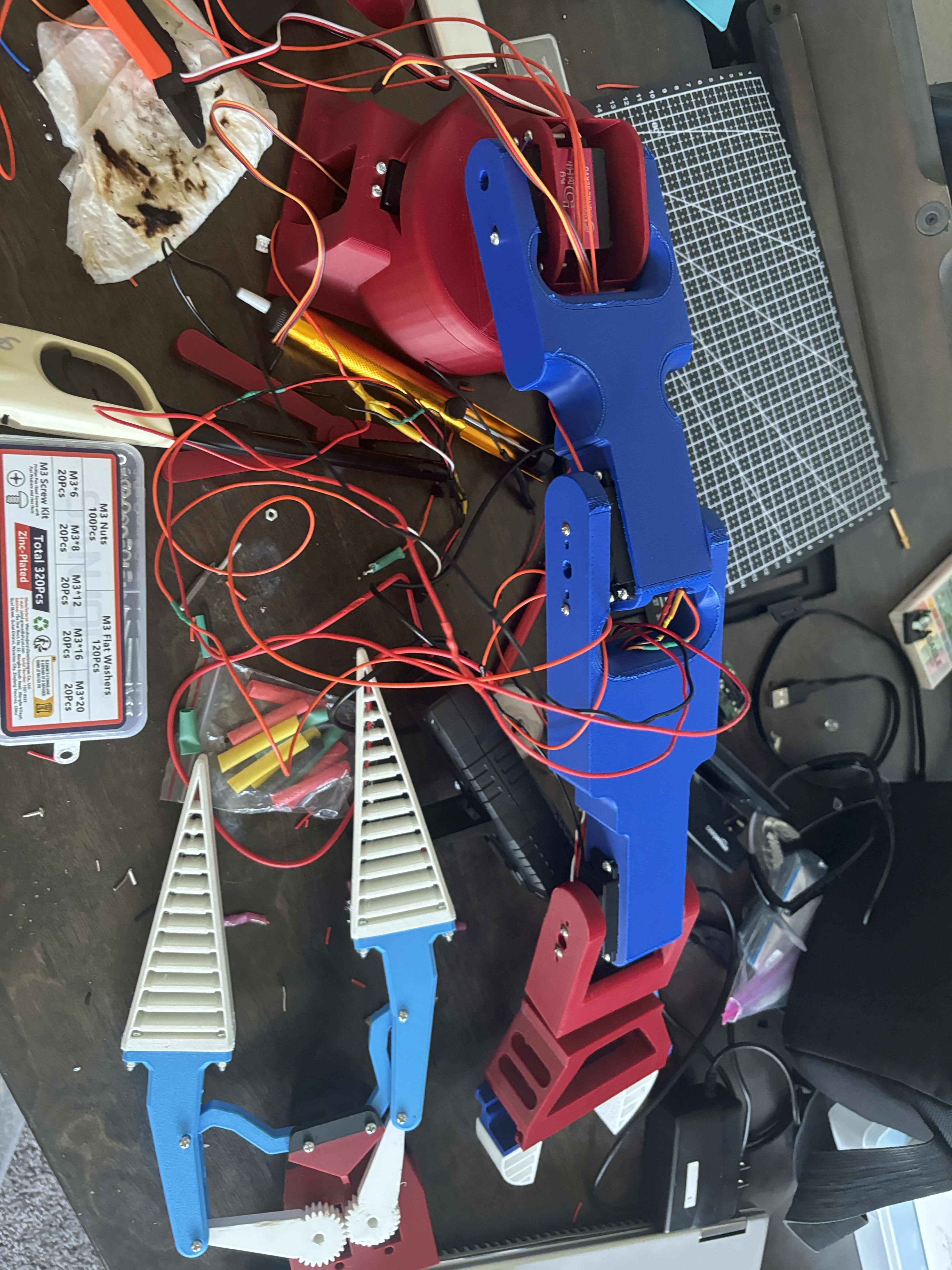

The first CAD links were finished and printed. The base could spin and the arm began moving, but the rear servo-horn support kept popping out. That was the first sign that the joint structure needed more than a basic fit.

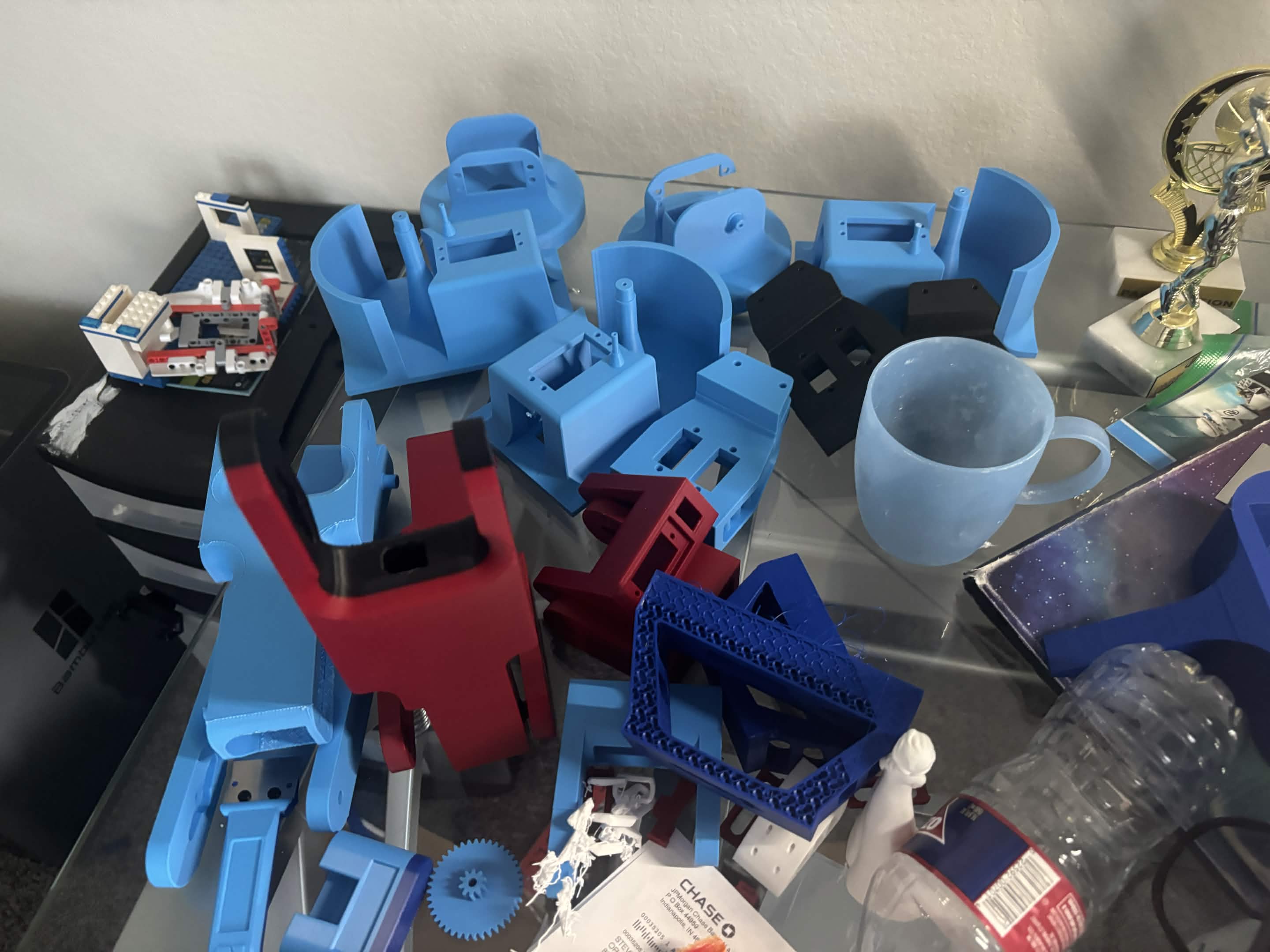

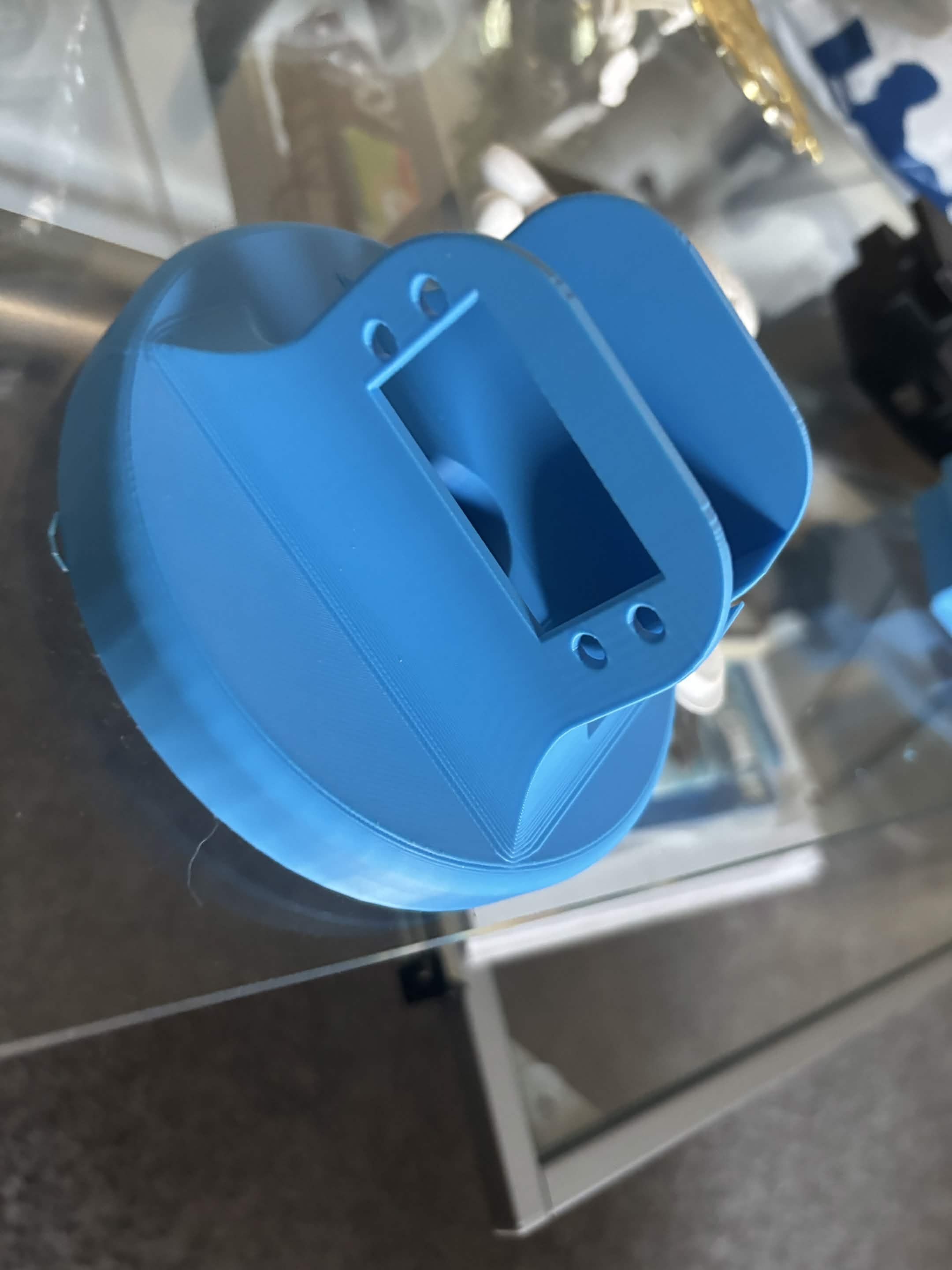

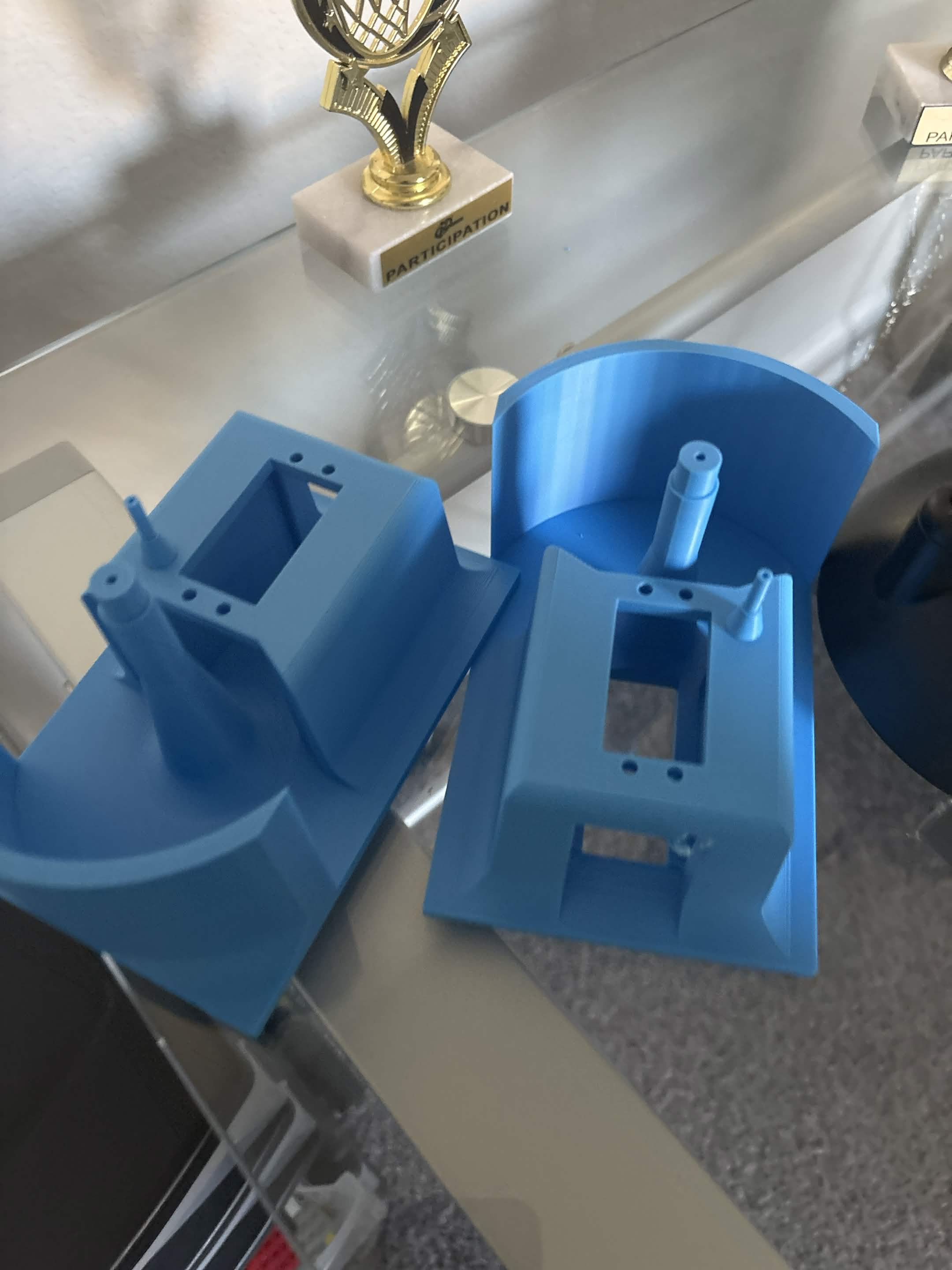

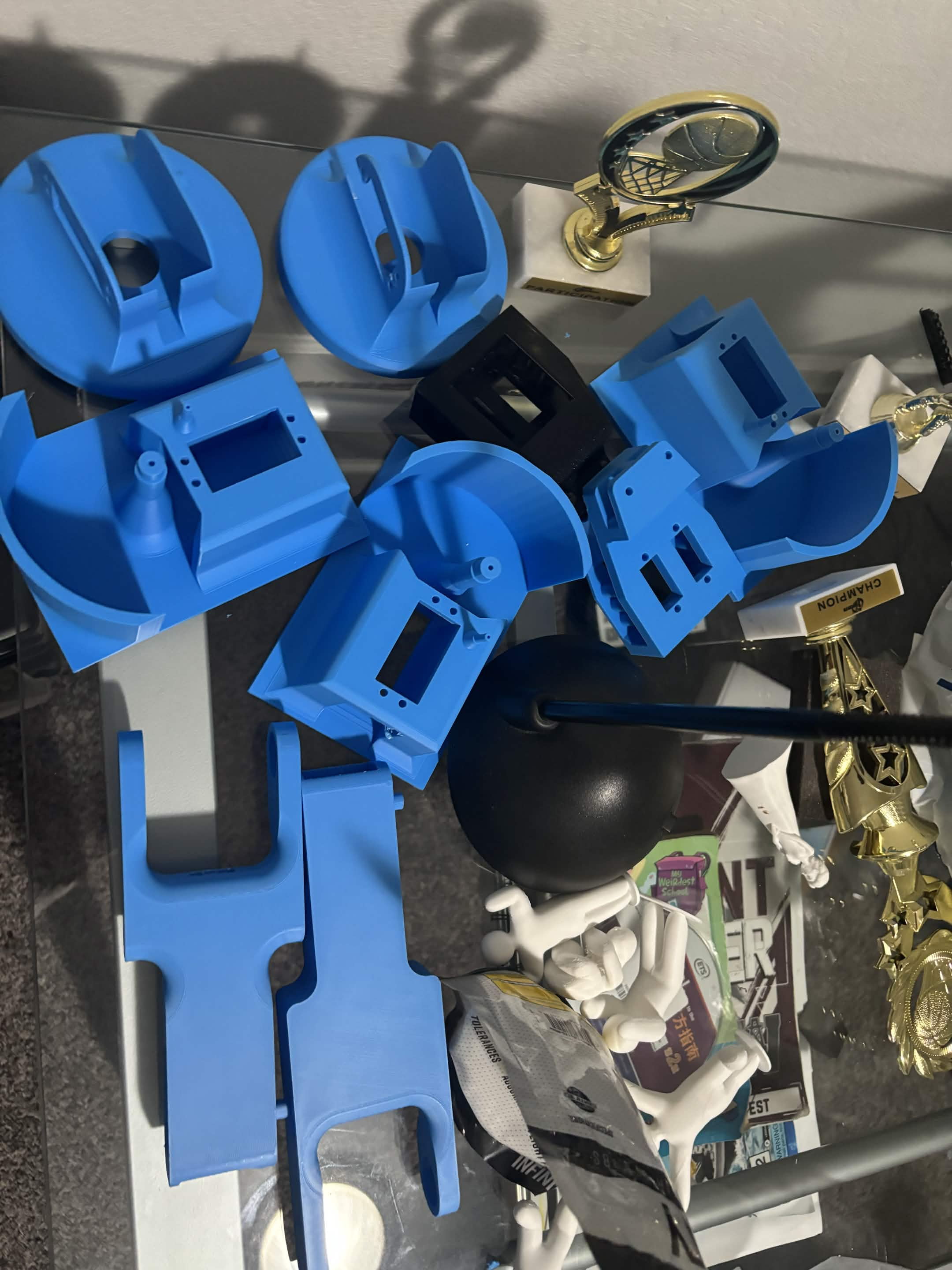

Several printed versions needed to be redone because the servo horn was too small, the servo slots were missing, or the servo bodies would not fit. These prints turned the design from a CAD model into parts sized around the actual components.

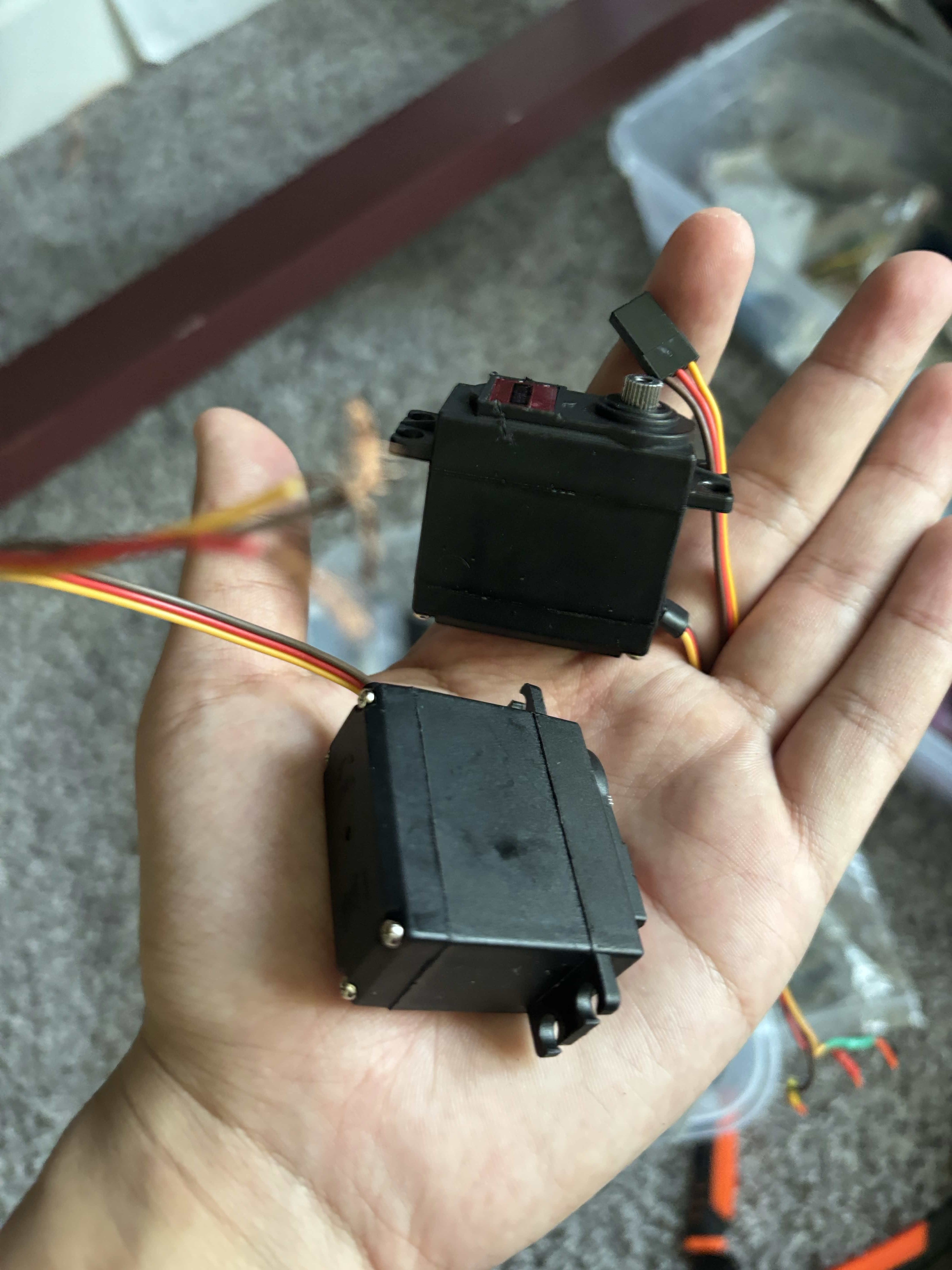

Plastic gears could not hold up, so I replaced them with metal gears and upgraded the servos. New printed parts were also made to give the larger hardware room to fit and to improve wire clearance.
The first gripper could open and close, but it added too much size and weight. I changed to a simpler, lighter V2 so the arm would have less load at the far end.

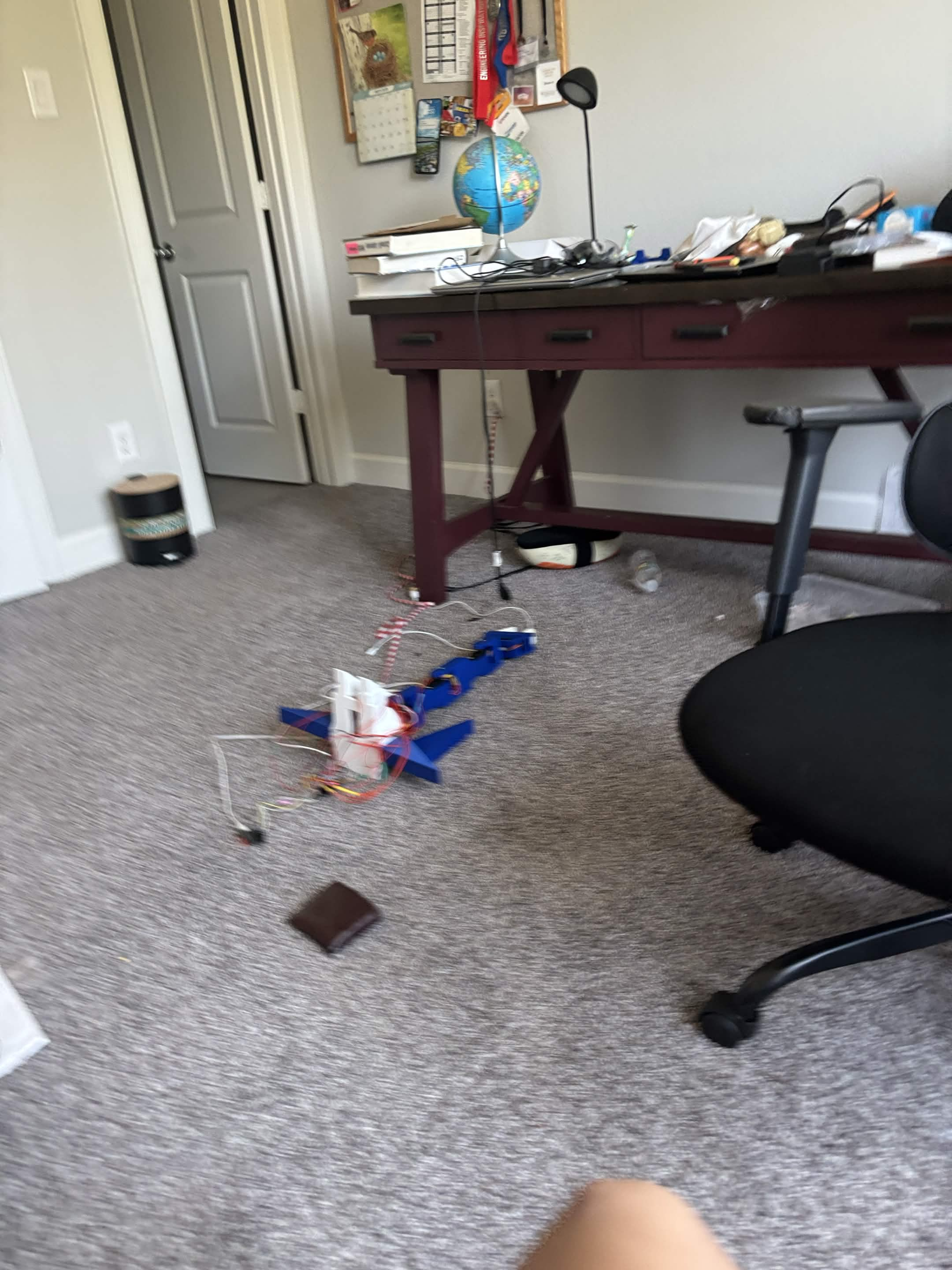

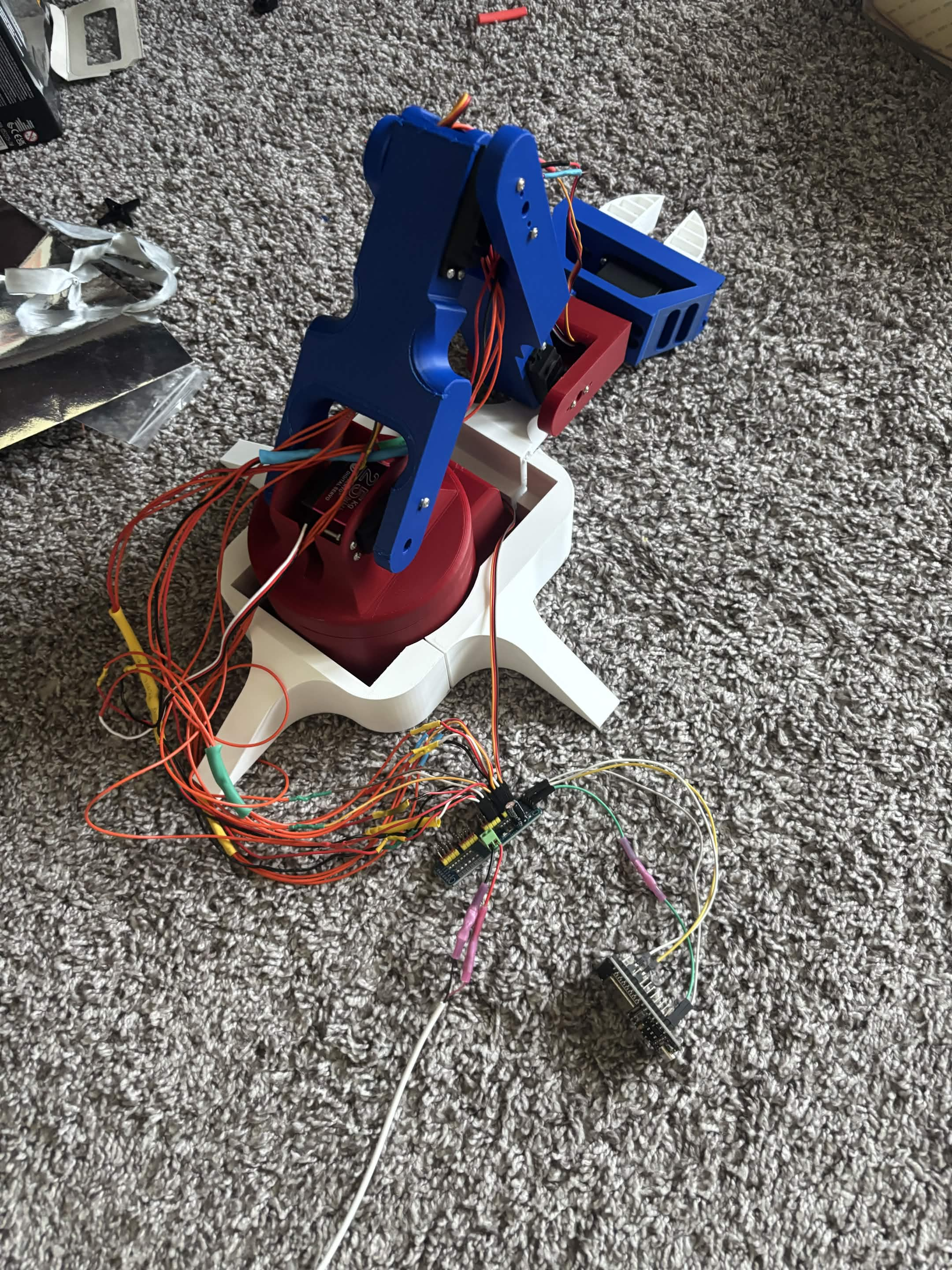

After a fall from the table, the arm needed diagnosis and repair. I added a larger foot to help prevent tipping, glued the bearing after the upper section kept separating under weight, and made room for wires and metal spacers. Metal servo horns improved the joint connection, while the bottom drive is still skipping and is the next mechanism to redesign.
Designing for a real robot means planning for torque, hardware tolerances, wire paths, and the way every extra gram at the gripper affects the base. The failed prints were not wasted—they showed exactly where the next version needed to improve.

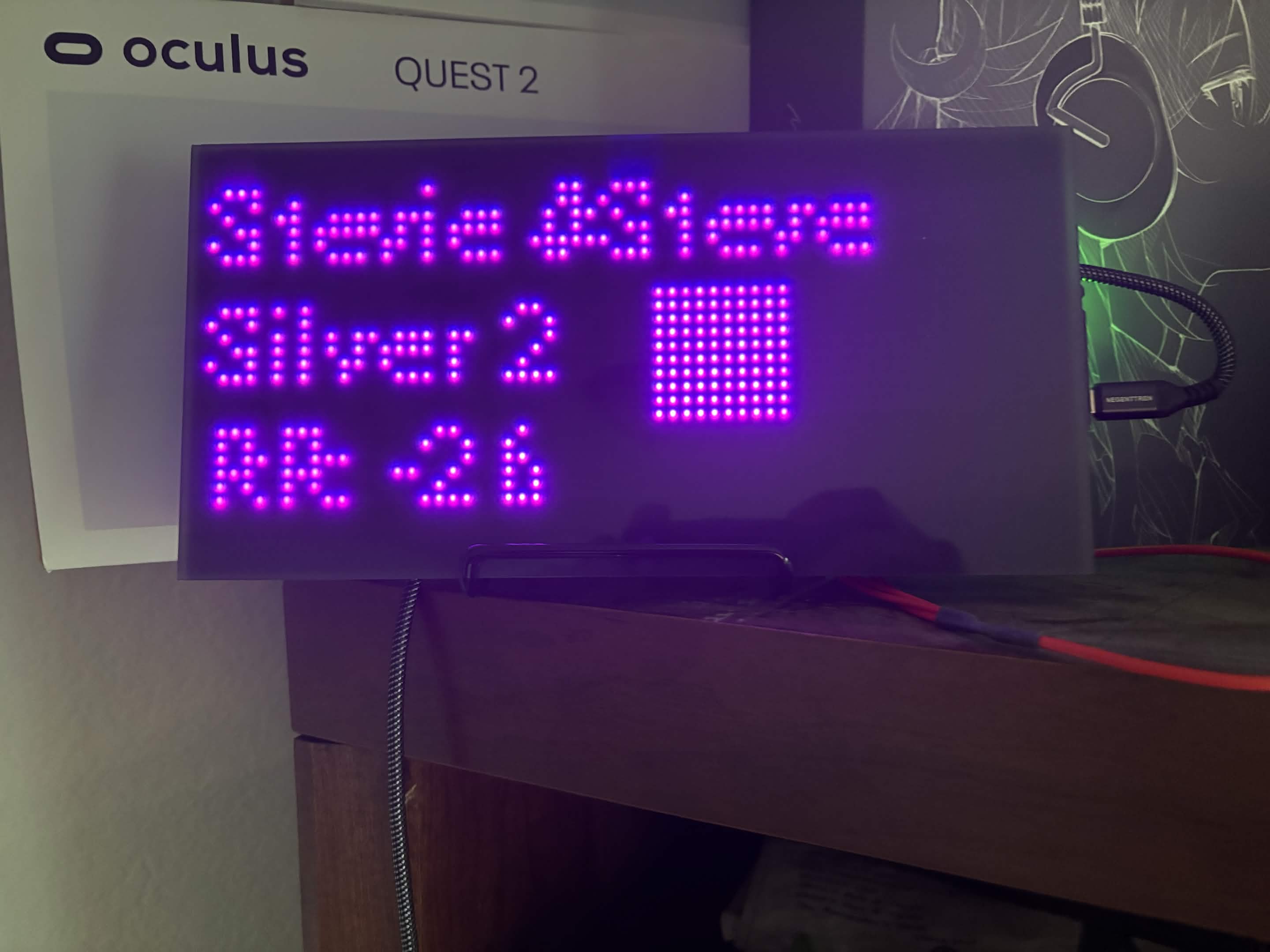

During this engineering project, I designed and built an internet-connected display system using an ESP32-M4 Matrix Portal than upgraded to ESP32-S3 Matrix Portal to fetch and showcase real-time game data. Programming in CircuitPython, I configured the microcontroller to set up Wi-Fi connections, pull live data through web APIs, and manage communication protocols between multiple ESP32 boards to transmit information smoothly across the system.
When hardware limitations affected performance, I created custom memory cleanup routines to improve the codebase. This ensured the data refreshed smoothly without crashing the system's limited RAM. I also faced a major setback when the wrong hardware components arrived. Instead of waiting for replacements, I reverse-engineered the pinouts and adjusted my wiring to make the existing parts work together.
To complete the project, I treated it like an open-source product. I built a dedicated website with information on the parts that I got and a whole tab that gave everyone the code that I created, allowing others to be able to create the same project that I created. I also demoed my project to a group of people to get people more interested in creating a product like mine.
